TEXTAL System for AI-Assisted Automated Protein Model Building
In 2003, Thomas R. Ioerger and James C. Sacchettini at Texas A&M University described TEXTAL, a pattern-recognition system that automatically traced atomic models through crystallographic electron density maps, substantially reducing the manual labour required in protein structure determination.
Background

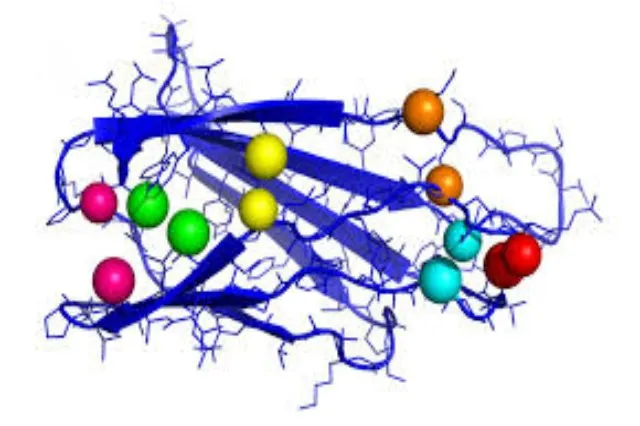

Determining the structure of a protein from X-ray crystallography data is, at its core, a puzzle. You fire X-rays at a crystallised protein, measure how the beam scatters, and from that scattering you reconstruct a three-dimensional map of electron density: a blurry cloud that shows, roughly, where the atoms are. Then comes the hard part. Someone has to look at that cloud and trace through it, placing atoms one by one to build a model of the molecule.
That tracing step required a trained crystallographer who could read the density map almost intuitively, recognising the shapes that corresponded to amino acid residues and peptide bonds. It was slow and painstaking work. By the early 2000s, structural genomics programmes were attempting to solve protein structures at industrial scale, processing large numbers of targets in parallel. The bottleneck was not data collection, which had become faster with modern synchrotron beamlines. The bottleneck was the human time needed to interpret the maps and build the models.
Some automated tools existed, but they struggled with maps of modest quality, where the electron density was ambiguous or incomplete. When the signal was not clean, automated methods tended to produce models with enough errors that a crystallographer still had to rebuild large sections by hand. The problem was that interpreting electron density requires recognising local three-dimensional patterns, and earlier computational approaches had not captured that kind of structural knowledge in a form a computer could use reliably.
What happened
Thomas R. Ioerger and James C. Sacchettini, working at Texas A&M University, built TEXTAL to address that gap. The system learned what electron density looks like around known structural features by training on solved protein structures, building a library of local density templates. When given a new map, it searched that library to find matching patterns, using them to guide where atoms should be placed. Rather than applying fixed geometric rules, it was drawing on a broad base of examples to recognise what it was looking at.
The approach was published in Acta Crystallographica Section D in 2003. Ioerger and Sacchettini showed that TEXTAL could trace models through electron density maps automatically and produce structures of sufficient quality to be taken into refinement, the subsequent computational stage that tightens a model until it fits the data as closely as possible. Getting a model to that stage without extensive manual intervention was the practical goal, and in tests across real crystallographic data the system reached it.
What made this more than a technical curiosity was the context it landed in. Structural genomics initiatives were accumulating unsolved structures faster than crystallographers could work through them. A system that could take a density map and return a traceable atomic model, without waiting for an expert to sit down with it, addressed a real and growing backlog. TEXTAL did not remove crystallographers from the process entirely, but it moved the human effort to later stages where judgement mattered more. The pattern-recognition approach Ioerger and Sacchettini described would inform how the field thought about automating model building for years afterward.
Why it mattered
TEXTAL demonstrated that machine-learning pattern recognition could automate one of the most time-consuming expert steps in X-ray crystallography, interpreting electron density maps well enough to place individual atoms, at a time when structural genomics initiatives were generating far more data than human crystallographers could process manually. By integrating learned templates of local density patterns, the system could build models of sufficient quality for refinement, accelerating the structure-determination pipeline. This work was an early example of AI assisting high-throughput structural biology, prefiguring later deep-learning approaches to the same problem.
People
Thomas R Ioerger, James C Sacchettini
Organisations
Texas A and M University
Sources
- TEXTAL system for automated solution of crystal structures using pattern-matching techniques.Acta Crystallographica Section D: Biological Crystallography (International Union of Crystallography).Primary source
- Automated Model Building Tools for Macromolecular Crystallography, RCSB PDB Historical Context.RCSB Protein Data Bank.institutional
- Automated protein model building: pattern recognition approaches in crystallography.PubMed Central / National Institutes of Health.Secondary
