IBM Shoebox Speech-Recognition Device Demonstrated
In 1962, IBM publicly demonstrated the Shoebox, a hardware device capable of recognising sixteen spoken English words, the digits zero through nine plus six arithmetic commands, and using that input to drive a calculating machine in real time, showing that limited-vocabulary speech recognition was mechanically feasible.
Background
By the late 1950s, a handful of research groups had begun trying to teach machines to understand spoken words. The results were narrow. Bell Labs had built a system in 1952 that could recognise spoken digits, but only if the speaker paused between each one, only if that specific speaker had trained the machine, and only over a small set of sounds. The gap between what a machine could hear and what a person might actually say to one was enormous.
The deeper problem was that nobody had agreed on how to approach the task computationally. Some researchers worked on matching acoustic patterns directly. Others tried to model the physical shape of vowels and consonants. There was no shared framework, and each system was essentially a one-off. Building something that worked in real time, on physical hardware, for a general audience, had not been done.
The vocabulary question was also unsolved. Even a small set of words contains enough acoustic variation, across different speakers and accents, to trip up a machine that has only seen a narrow range of examples. Getting a device to reliably distinguish “five” from “nine”, or “plus” from “minus”, under conditions you do not fully control, is harder than it sounds.
What happened

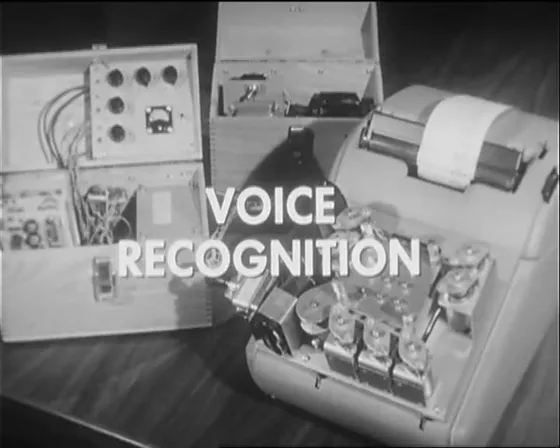

IBM engineers built the Shoebox as a physical device, not a software program running on a general-purpose computer. The name came from its size. Inside, it used diode-resistor-logic circuitry and three analogue audio filters to process the incoming sound and match it against stored patterns. There was no general acoustic model of the kind researchers would develop decades later. The machine worked by comparing what it heard against a fixed set of electrical signatures.
The vocabulary was sixteen words: the digits zero through nine, and six arithmetic commands including “plus”, “minus”, “total” and “subtotal”. A person spoke into a microphone, the Shoebox parsed the command, and the result drove a connected calculating machine. The whole process happened in real time. IBM demonstrated it publicly at the 1962 World’s Fair in Seattle, where visitors could speak numbers and watch the device respond.
Sixteen words is a tiny vocabulary by any measure. The Shoebox could not be spoken to by just anyone in any voice, and it was not a product IBM released for sale. What it showed, though, was that the problem was not in principle impossible for hardware to handle. A machine could sit at the boundary between a human voice and a calculating engine, interpret what it heard, and act on it correctly, right there in front of you. That was not obvious before someone built one and proved it.
Why it mattered
The Shoebox demonstrated that a purpose-built electronic device could bridge spoken human language and machine computation, albeit over a tightly constrained vocabulary. It established an existence proof for real-time speech recognition in hardware at a time when the field had no agreed computational framework for the problem. The demonstration attracted wide public attention and contributed to IBM's long-term investment in speech research, which would later produce systems of broader scope.
